The Stiebel Eltron Mini™ Series tankless water heaters are economical, ultra-compact, attractive point-of-use tankless water heaters designed for consistent, low-flow, point-of-use applications. The Mini Series is most suited to applications which possess a relatively constant flow rate. Due to its compact size, the Stiebel Eltron Mini 2.5-1 easily fits directly under a sink or an adjacent cupboard or closet, so it delivers hot water straight to the sink with almost no delay.

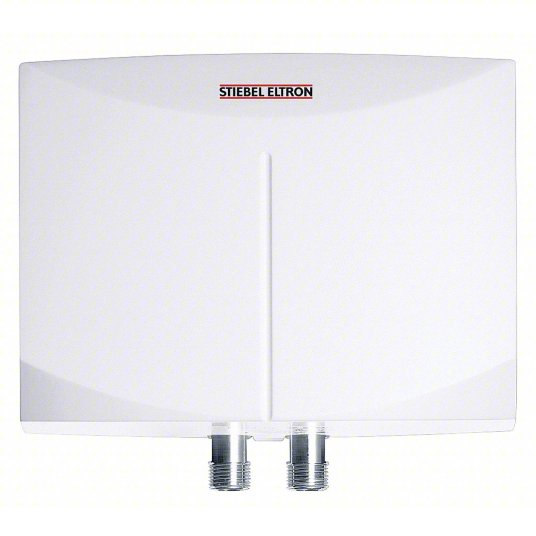

STIEBEL ELTRON ELECTRIC TANKLESS WATER HEATER 2.5 1 MINI
$189.00
Description
Stiebel Eltron Mini 2.5-1 Specifications
| KW | 2.4 KW @ 120V |
| Voltage: | 110 to 120 volts / single phase / 50 – 60 Hz |
| Max. Amps: | 20 AMPS |
| Breakers Required:* | 1 x 20 AMP breaker |
| Wiring:* | Minimum #12 AWG Copper |
| Minimum Water Resistivity | 2795 ohm x in / 1100 ohm x cm |
| Degree of protection according to IEC 529 | IP 24 |
| Dimensions (H x D X W): | 6.5 x 3.25 x 7.5″ (16.5 x 8.2 x 19 cm) |
| Weight: | 5 lbs |
| Pipe Fittings: | for 3/8″ O.D. flex connector |
| Energy Efficiency: | 99%+ |
| Activation Flow Rate: | 0.40 GPM / 1.5 LPM |
| Max. Water Pressure: | 150 psi |
| Warranty: | Manufacturer’s 3 Year Warranty |
| Safety: | ETL Listed (US / Canada) |
| Protection: | thermal hi-limit cut-out switch |
